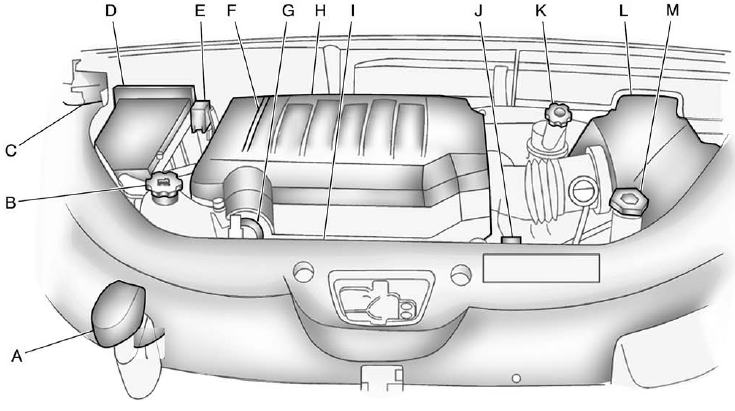

Engine Compartment Overview
A. Radiator Pressure Cap. See Cooling System on page 10‑14.
B. Engine Coolant Recovery Cap. See Cooling System on page 10‑14.
C. Remote Negative (−) Terminal. See Jump Starting on page 10‑78.
D. Engine Compartment Fuse Block on page 10‑31.
E. Remote Positive (+) Terminal. See Jump Starting on page 10‑78.
F. Power Steering Reservoir and Cap (under engine cover). See Power Steering
Fluid on page 10‑21.
G. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil on page
10‑8.
H. Engine Cover on page 10‑8.
I. Engine Oil Dipstick (out of view). See “Checking Engine Oil” under Engine Oil
on page 10‑8.
J. Automatic Transmission Fluid Dipstick. See “Checking the Fluid Level” under
Automatic Transmission Fluid on page 10‑12.
K. Brake Master Cylinder Reservoir. See “Brake Fluid” under Brakes on page
10‑22.
L. Engine Air Cleaner/Filter on page 10‑12.
M. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Washer
Fluid on page 10‑22.
